Description

• Mil-spec positioner used with (M22520/2-01) or similar tool
• Locates size 22 contacts
• Commonly used to locate pin contacts installed in MIL-C-38999 circular connectors

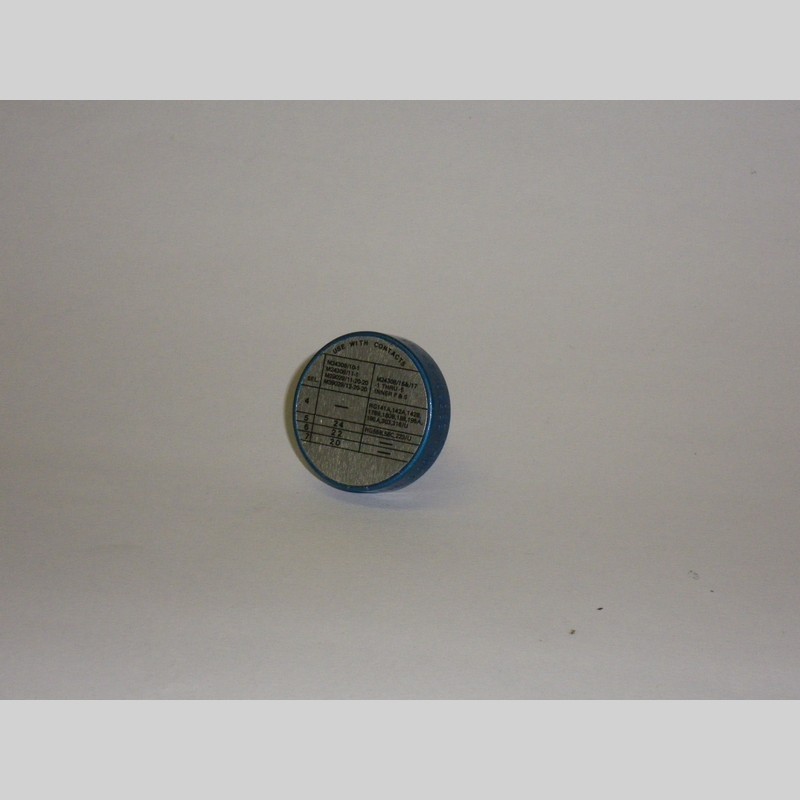

Mil-spec M22520/2-09 is a bayonet positioner used with the mil-spec M22520/2-01, crimp tool frame on size 22 pin (male) contacts installed in MIL-C-24308 subminiature rectangular and MIL-C-38999 circular connectors.

Contact numbers:

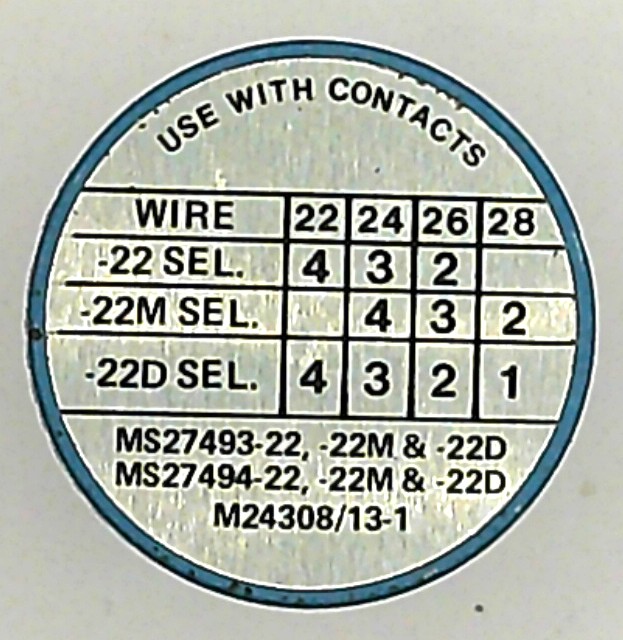

MS27493-22, MS27493-22M, MS27493-22D, MS27494-22, MS27494-22M, MS27494-22D, MS24308/13-1, M39029/58-360, M39029/58-361, M39029/58-362, M39029/87-470, M39029/87-471, M39029/87-472, M39029/87-473. Other manufacturers part number 8476-09

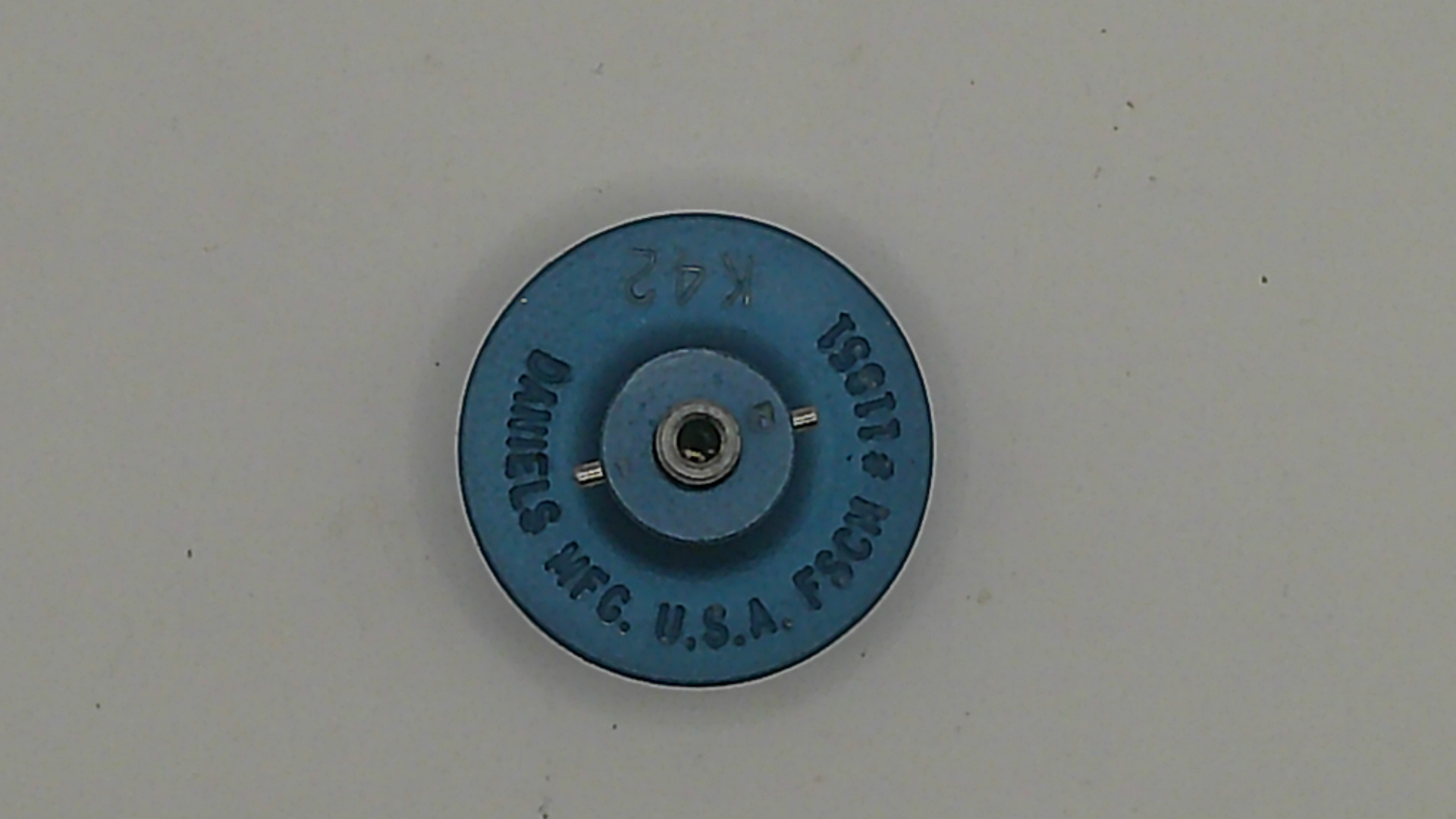

Manufacturer: Daniels Tools
Condition: New Surplus
